Sailor 6110 Mini-C GMDSS

Maritime

The Sailor 6110 Mini-C GMDSS system is a satellite solution designed for the maritime market. It provides not only a reliable communication channel but also a distress and safety system in emergency situations.

Alerting

The system automatically sends GMDSS-compliant distress alerts to rescue authorities, ensuring rapid emergency response anywhere in the world.

Tracking

Its built-in GPS and communication functions allow continuous vessel position tracking and scheduled reporting to maritime authorities.

Reliability

Designed for harsh marine environments, the SAILOR 6110 provides dependable communication even in extreme weather conditions.

Integration

The unit is built to integrate seamlessly with onboard navigation and communication systems, simplifying installation and daily operation.

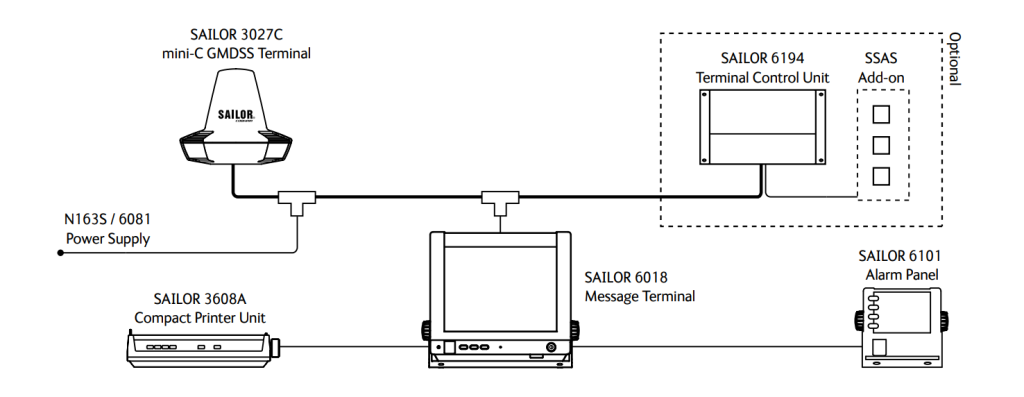

Key Features

SAILOR® 3027C Mini-C GMDSS Terminal

The SAILOR® 3027C Mini-C GMDSS terminal represents the new generation of mini-C terminals in the proven SAILOR product line.

SAILOR® 6018 Message Terminal

This next-generation touchscreen message terminal features a high-resolution 10.4-inch display, providing a smooth user experience through an intuitive icon-based interface. It is equipped with SD and USB ports for external storage.

SAILOR® 6194 Terminal Control Unit (TCU) – optional

The Terminal Control Unit (TCU) is used with the SSAS option as a connection point, but its functionality can be expanded later. Compliant with maritime standards, it provides easy access and connectivity.

SAILOR® 6101 Alarm Panel

Alarm panel designed for the SAILOR 6000 series, integrating visual and audible alarms as well as status indication for EGC messages. All alarms received via Inmarsat-C can be acknowledged with a single press.

SAILOR® 6103 Alarm Panel

This alarm panel shares the main features of the SAILOR 6101 but adds the capability to handle VHF and MF/HF distress alerts. As with the SAILOR 6101, all alarms can be acknowledged with one touch.

Technical Specifications

Dimensions (GMDSS Terminal)	Diameter: 170.5 mm/ Height: 145 mm
Dimensions (Message Terminal)	234 x 269 x 70 mm
Weight	(GMDSS Terminal): 1.10 kg/ (Message Terminal): 2.2KG
Power Supply	(GMDSS Terminal): 10.5 - 32 VDC (Message Terminal): 12 or 24 V DC nominal

Documentation

Services

The SAILOR 6110 low-bandwidth data service includes SOS, GPS, geolocation, and Telex.
