SAILOR® 6120 MINI-C SSAS

Maritime

The SAILOR 6120 SSAS system automatically transmits security alert messages in the event of threats or emergencies, ensuring rapid response and full compliance.

SSAS

Transmission of IMO-compliant security alerts.

Alert Buttons

Discreet and immediate activation in emergency situations.

Inmarsat-C

Robust satellite system designed for demanding maritime environments.

GPS

Precise positioning for accurate reporting to authorities.

Key Features

SSAS Regulation Compliance

The SAILOR 6120 Mini-C SSAS fully meets and exceeds the requirements set out in IMO Resolutions MSC.136(76) and MSC.144(77) under SOLAS Regulation XI-2/6. This regulation states that all vessels above 500 GT must be equipped with a Ship Security Alert System (SSAS) for use in the event of pirate attacks, enabling notification to the flag state administration. The alarms are silent, meaning there is no audible or visual indication onboard that an alert has been activated.

Approvals and Certifications

The SAILOR 6120 Mini-C SSAS is approved by Inmarsat as well as all major classification societies and national flag state authorities where required. In addition to its primary function as an SSAS alert system, the SAILOR 6120 Mini-C SSAS can also operate as an LRIT (Long Range Identification and Tracking) system.

Technical Specifications

Dimensions (mini-C Terminal)	Diameter: 170.5 mm / Height: 145 mm
Dimensions (Terminal Control Unit)	239 mm x 172 mm x 54 mm
Weight	(mini-C Terminal) :1,1 Kg / (Terminal Control Unit): 0,8 Kg
Power Supply	10.5 - 32 VDC

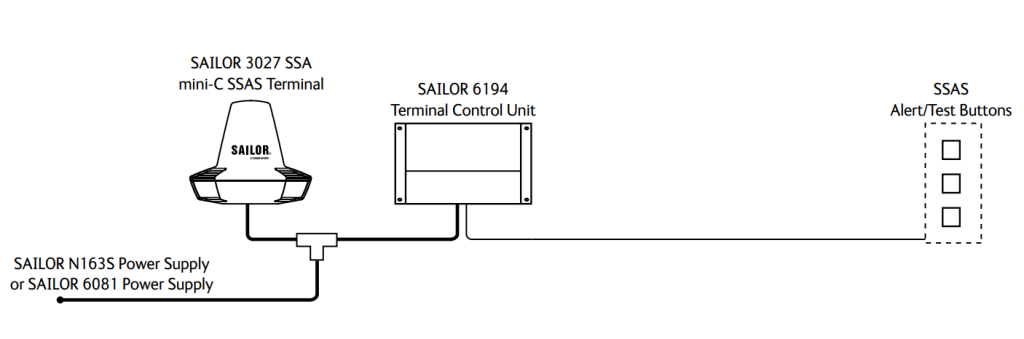

Interfaces	2 x SSAS alert buttons with 50 m cable /1 x Test button with 50 m cable
