Inmarsat’s Network

Present in all sectors where there is a need of communication, Inmarsat’s geostationary satellites cover le whole world excepted poles.

Since his creation, Inmarsat renew his satellites fleet and complete his ground station in purpose to offer voice services and enable Internet connection with a share bandwidth or streaming.

For maritime market :
security & reliability

  • Inmarsat FleetBroadband
  • Inmarsat FleetOne
  • Inmarsat FleetPhone
  • Inmarsat C

For terrestrial market :
portability & high speed broadband

  • Inmarsat IsatPhone
  • Inmarsat BGAN
  • Inmarsat BGAN M2M
  • Inmarsat IsatHub

Inmarsat’s services

At sea or onshore, Inmarsat offer nowadays many services based on two constellation :

I4 in L-band : Inmarsat C in maritime sector only : data broadcasting at low speed up to 600 bits for bidirectional messaging service, GPS geolocalisation of vessels (LRIT, SSAS), Inmarsat C network is GMDSS compatible.

Inmarsat Global Satellite Phone Service (GSPS) in terrestrial sector and Fleetphone for maritime ; for voice communication, no data broadcasting at low speed available.

Inmarsat BroadBand Global Area Network (BGAN) and Inmarsat FleetBroadband (FBB) : onshore or at sea for voice communication, for Internet connexion in shared bandwidth  up to 468 Kbit/s or in streaming up to 650 Kbit/s (High Data Rate onshore only).

I5 : in Ka-band and L-band

Inmarsat Global Xpress (GX) with Land Xpress (LX) and FleetXpress (FX) services : onshore or at sea, for voice communication and Internet connection up to 4 Mbit/s in shared bandwidth or in streaming with a symmetrical or asymmetrical throughput and a defined contention ratio (CIR)

I6 : upcoming, first launch in 2020

Satellites have a 25 years lifespan.

Inmarsat own the ground stations which ensure according to services, the redirection to Internet (PoP) or switched network.

Inmarsat is based in London. The company is hold nowadays by private funds.

Inmarsat IsatPhone (GSPS)

For voice communication or SMS by using an handheld. The IsatPhone 2 is the more recent last generation terminal. He has inbuilt GPS and an SOS button. The first handheld Isatphone Pro is not produced or maintained anymore. It needs an update of the Firmware to stay operational.

The Isatphone 2 satellite phone has an antenna that you have to point the satellite out outdoor in the direction of equator. It automatically get GPS location.

Indoor you can put it in a docking station, itself linked by a cable to an external passive or active antenna.

This terminal is compatible with other accessories : solar panels…

IsatHub

IsatHub is actually the entry-level model of BGAN service to have voice communication and an Internet connection up to 384 Kbit/s. The Isavi  terminal is an Wi-Fi BGAN hotspot by satellites, that you can use with a smartphone, a tablet computer working on IOS or Androïd, or a computer.

Easy to use, the Isavi is for private individual, it works thanks to app downlaoded previously.

Inmarsat BGAN (BroadBand Global Area Network)

This service is available since the end of 2007. Inmarsat BGAN allow voice communication onshore and internet connection in shared bandwidth up to 484 kbit/s and in streaming to 650 Kbit/s. Widely used in crisis time, conflict, in backup of current communication systems, BGAN terminals are portables, but you can also install them like a fixed solution with an external case to protect them or on a vehicle with a magnetic antenna.

BGAN supply have been enriched and now subscription can have one or several SIM card, these SIM card shared an allowance for using all services.

Moreover Inmarsat has created specific offers : BGAN Link with high allowances with very competitive prices, especially for usage in Africa.

Inmarsat Mobile to Mobile (M2M)

M2M service is for those who deploy BGAN terminals in purpose to exchange data in low quantity by Internet. For professional remote monitoring applications, transmission of alerts from sensor or equipment surveillance, M2M terminals with inbuilt or not antenna are very ruggedized. We offer this service with tailor made packages, and access to a platform for terminals configuration.

Inmarsat Land Xpress

Available since 2015, the GlobalXpress service in Land or Entreprise (LX) is for everyone those who want to have a symmetrical or asymmetrical bandwidth up to 4 Mbit/s by using portable or fixe terminals with a small parabolic antenna and a pointing assistance. Operational on I-5 satellites that work in Ka-band with a repetition in L-band, this service has specific offer with contention ratio define while a commitment period adaptable to events, one-time operations. Implementation is facilitate by design of new terminals.

FleetBroadBand

This referent service in maritime communications, with more than 100 000 vessels equip with this system, deliver a bidirectional access for voice communication and especially Internet connection in shared bandwidth up to 464 Kbit/s and 256 Kbit/s in streaming.

Different FleetBroadBand terminals reflect the radome size and access to maximum services : FBB150, FBB250, FBB500. None of these terminals are GMDSS compatible.

FBB services has evolved with users needs of Internet connection : from 25MB to 40GB / month for one or several SIM card on board of the same vessel.

Very professional, FBB offers are associated to SIM cards have special monitoring : configuration of trafic alerts, access restrictions to some protocols, bandwidth monitoring…

Fleet Xpress

This service is for big users of bandwidth on vessels to fix their needs in voice communication and Internet connection up to 4 Mbit/s, always with a symmetrical or asymmetrical bandwidth, or in backup of other solutions (VAST)

This band-Ka with repetition in L-band service is available with terminals equip with 60 or 100 cm radome antenna.

Offers differentiate, depending on each type of terminal, the bandwidth with the contention ratio and the commitment period of 12, 24 or 36 months to reduce costs.

Inmarsat C

The oldest and the most common Inmarsat’s service install on board of all size vessels. Inmarsat C service and the associated terminals obey to international regulation in case of monitoring and security.

Inmarsat C service, bidirectional and limited to 600 bit/s, is essential to exchange datas from compact terminal with or without inbuilt omnidirectional antenna following the standard in effect in the cruising area, the type of vessel, the other communication systems on board : basic terminal, Long Range Identification Terminal (LRIT), Ship Security Alert System (SSAS), Global Maritime Distress System (GMDSS)

Communications are charged according to volume exchange by Kbyte with specific services : pooling, reporting, delivery receipt, mailbox…

E-SAT is Accounting Authority certified by Inmarsat. With letting us manage the Inmarsat C terminals on your vessels under french or foreign flags and cruising everywhere around the world, you benefit from detailed invoice, easy to read and unique for all operators that your foreign coastal trafic pass.

Fleetphone

For maritime secteur and voice communication, Fleetphone service is the perfect solution to have on board communication for captain or crew. This solution is made by two OCEANA terminals with or without handset and external active antenna link by cable. This solution also have an SOS button in a secure crisis facility against piracy.

FleetOne

For pleasure sailor who want to keep communication with the shore, thanks to voice communication or Internet connection up to 150 Kbit/s, the Inmarsat FleetOne service is available from compact terminals with an under radome antenna.

This service suggest two offers : Coastal for those who cruising near from the shore and Global for a global coverage. The commitment period change and contain a minimal allowance with minutes and Megabytes.

It’s finally the only service wich have prepaid cards : cards with units and a validity.

BGAN

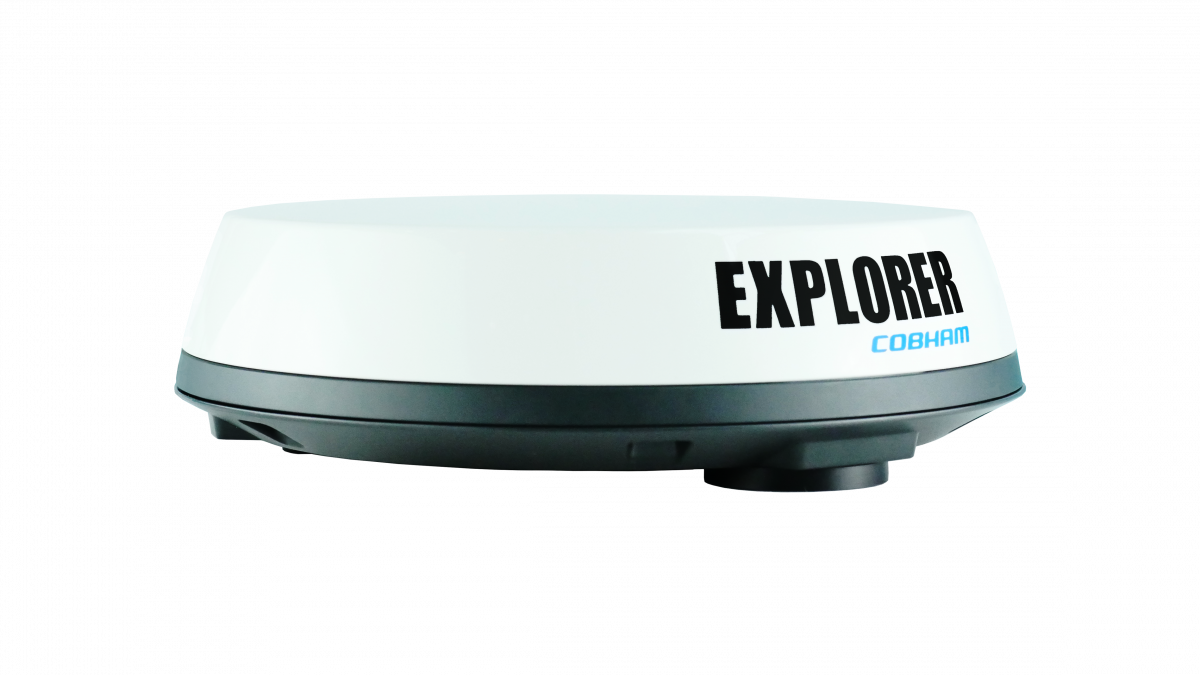

Cobham Explorer 323

Type of equipment :

Land

Vehicule

20/5000 Proposed services :
Voice
High speed Data
SMS
GPS
Inside the box :
  • Terminal Explorer 323 (modem + antenna)
  • DC et Ethernet cables (6m)
  • Installation guide
Dimensions : 9.7 cm x Ø32.1 cm
Weight : 3.9 kg
Ingress Protection : IP66
Operating temperature : - 25°C à + 55°C
Connectivity : LAN ; WLAN ; DC + Ethernet cables ; SIM card reader
Data rate : IP Standard up to384 Kbps ; IP Streaming up to 64 Kbps

Cobham Explorer 325

Type of equipment :

Vehicule

20/5000 Proposed services :
Voice
High speed Data
Video
SMS
GPS
Traking
Inside the box :
  • EXPLORER 325 terminal (modem)
  • Antenna
  • Magnetic fixing kit
  • 2.7m antenna cables
  • 2m Ethernet cable
  • Thrane IP handset
  • 2/24 V DC power cable (3 m)
  • Getting Started Kit: Quick Start Guide, CD with Manuals
Dimensions : modem 41 x 231 x 278 mm ; antenna 128 x Ø 349 mm
Weight : modem 2.2 kg ; antenna 3.6 kg
Ingress protection : modem IP31 ; antenna IP56
Operating temperature : - 25°C à + 55°C
Connectivity : 1 x RJ11 analog ; 1 x Ethernet RJ45 ; modem TNC-Socket, F ; antenna : TNC-Socket, F
Data rate : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Cobham Explorer 510

Type of equipment :

Land

20/5000 Proposed services :
Voice (4 Kbps)
High speed Data (32, 64, 128 Kbps)
ISDN
SMS
Inside the box :
  • EXPLORER 510 terminal
  • Ion-Lithium battery
  • Carry bag
  • USB to Ethernet Adapter
  • Power supply 100-240VAC
  • Quick start kit: multilingual quick start guide + Multilingual user interface (ENG, FR, ALL, ES, RU, JP, CH)
Dimensions : 202 x 202 x 51,8 mm
Weight : 1.4 kg
Ingress Protection : IP66
Operating temperature : - 25°C à + 55°C
Connectivity : 1 x USB 2.0 ; 1 x WLAN
Battery: Lithium-ion, up to 3 hours of communication
Data rate : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Cobham Explorer 540 M2M

Type of equipment :

Land

20/5000 Proposed services :
M2M
High speed Data
Remote access
2G / 3G / LTE modem (option)
Inside the box :
  • Terminal explorer 540
  • Mounting bracket
  • Installation manual
Dimensions : 202 x 202 x 51.8 mm
Weight : : 1.6 Kg
Ingress Protection : IP66
Operating temperature : - 40°C à + 75°C
Connectivity : 1 x micro-USB ; 1 x RJ45 ethernet with PoE ; Ethernet ; I/O connector
Data rate : IP standard up to 464 Kbps

Cobham Explorer 710

Type of equipment :

Land

20/5000 Proposed services :
Voice
High speed Data (HDR)
ISDN
Video
SMS
GPS
Tracking
Inside the box :
  • EXPLORER 710 terminal (modem + antenna)
  • Ion-Lithium battery included
  • Antenna cable 0.1m
  • ISDN / LAN cable 2m
  • 15-230VAC power supply
  • Getting Started Kit: Quick Start Guide
Dimensions : 332 x 279 x 54 mm
Weight : 3.2 kg
Ingress protection : modem IP52 ; antenna IP66
Operating temperature : - 25°C à + 55°C
Connectivity : 1 x RJ11 analogique ; 2 x RJ45 PoE Cl.2 sur une interface RJ-45 ; 1 x port USB ; 1 x RJ45 ISDN ; 1 x WLAN
Battery: Lithium-ion, up to 2h30 transmission
Data rate : IP standard up to 492 Kbps ; IP streaming up to +650 Kbps (streaming HDR)

Cobham Explorer 727

Type of equipment :

Vehicule

20/5000 Proposed services :
Voice
High speed Data
ISDN
Video
SMS
GPS
Tracking
Inside the box :
  • EXPLORER 727 terminal (modem + antenna)
  • Antenna cable 2.7 m
  • Ethernet cable 5 m
  • Thrane IP handset
  • 24V DC power cable 6 m with 5 additional wires for input / output connector
  • Antenna mounting kit
  • Getting Started Kit: Quick Start Guide, CD with Manuals
Dimensions : : modem 42.5 x 231 x 273 mm ; antenna : 128 x Ø477 mm
Weight : modem 2.5 kg ; antenna 6 kg
INgress Protection : modem IP31 ; antenna IP56
Operating temperature : - 25°C to + 55°C
Connectivity : 2 x RJ11 analog ; 1 x ethernet RJ45 ; 1 x ISDN RJ45 ; modem TNC-Socket Femelle ; antenna TNC-Socket Femelle
Data rate: IP Standard up to 492 Kbps ; IP Streaming up to 256 Kbps

Hughes 9202M

Type of equipment :

Land

20/5000 Proposed services :
High speed Data
GPS
Voice
SMS
ISDN
Inside the box :
  • HUGHES Terminal 9202M
  • Ion-Lithium battery included
  • 110/240 VAC power supply
  • Ethernet & ISDN cable
  • Getting Started Kit: Quick Start Guide, CD with Manuals
Dimensions : 216 x 216 x 45 mm
Weight : 1,5 kg
Ingress protection : IP55
Operating temperature : - 5°C à + 55°C
Connectivity : 2 x RJ11 analog ; 1 x RJ45 Ethernet ; 1 x RJ45 ISDN
Battery: Lithium-ion, up to 3.25 h in transmission
Data rate : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Hughes 9502 M2M

Type of equipment :

Land

20/5000 Proposed services :
High speed Data
Inside the box :
  • BGAN HUGHES 9502 M2M Terminal (IDU)
  • External antenna (ODU)
  • Antenna cable 10m
  • Getting Started Kit: Quick Start Guide, CD with Manuals
Dimensions : modem 150 x 200 x 45 mm ; antenna : 385 x 385 x 33 mm
Weight : modem 1,5 kg ; antenna 1,9 kg
Ingress Protection : modem IP40 ; antenna IP65
Operating temperature : - 40°C à + 75°C
Connectivity : 1 x port USB ; 1 x RJ45 Ethernet
Data rate : IP standard up to 464 Kbps

Hughes HNS 9211

Type of equipment :

Land

20/5000 Proposed services :
High speed Data
Dimensions : 232 x 292 x 51 mm
Weight : 2,019 Kg
Ingress Protection : IP55 ; MIL-SPEC 810B
Operating temperature : - 5°C to + 55°C
Connectivity : 2 x POTS RJ11 voice/fax ; 1 x RJ45 Ethernet
Battery : Lithium-ion, up to 4 hours of transmission
Data rate : IP standard up to 492 Kbps ; IP streaming up to 650 Kbps

Hughes HNS 9450-C11

Type of equipment :

Vehicule

20/5000 Proposed services :
High speed Data (HDR)
Tracking
GPS
ISDN
SMS
Video
Voice
Inside the box :
  • HUGHES Terminal 9450-C11 Antenna
  • Antenna: tracking antenna, RF cable (8m)
  • Magnetic brackets
  • Power cable
  • Getting Started Kit: Quick Start Guide, CD with Manuals
Dimensions : modem 46 x 281 x 234 mm ; antenna 252 x 119 mm
Weight : modem 2.3 kg ; antenna 2 Kg
Ingres Protection : antenna IP56
Operating temperature : - 25°C à + 55°C
Connectivity : 2 x RJ11 analog ; 4 x PoE ; 1 x port ISDN ; 1 x WLAN
Data rate : IP standard up to 464 Kbps

ISAT PHONE

IsatPhone 2

Type of equipment :

Maritime

Land

Vehicule

20/5000 Proposed services :
Voice (2,4 Kbps)
Low speed Data
SMS
GPS
Tracking
SOS button
Inside the box :
  • Battery
  • Mains 220/110V charger and international plugs
  • 12V car charger
  • Handsfree
  • Micro-usb cable
  • USB key
  • Belt clip
  • User guide (8 languages)
Dimensions : 169 x 52 x 29 mm
Weight: 318 g
Ingress Protection : IP65 et IK04
Operating temperature : - 20°C à + 55°C
Connectivity : micro USB ; audio In ; Bluetooth 2.0
Battery: Lithium-ion, up to 8 hours of autonomy

FLEETBROADBAND

Sailor 150

Type of equipment :

Maritime

20/5000 Proposed services :
Voix (4 Kbps)
Data haut-débit (jusqu'à 150 Kbps Standard IP)
SMS
GPS
Géo localisation
Indice de protection : IP31 (modem) - IPX6 (antenne)
Positionnement tarifaire : entre 2 000,00 € et 5 000,00 € HT

ISATHUB

INMARSAT C

Sailor 6110 Mini-C GMDSS

Type of equipment :

Maritime

20/5000 Proposed services :
Low Speed Data
SOS button
GMDSS terminal
Tracking
GPS
Telex

SAILOR 6120 SSA System Mini-C

Type of equipment :

Maritime

20/5000 Proposed services :
Anti piracy (SSAS)
Tracking
Low speed Data

FLEET PHONE

FLEET ONE

COBHAM Sailor Fleet One

Type of equipment :

Maritime

20/5000 Proposed services :
High speed Data
Tracking
GPS
SMS
Voice
Dimensions : 278 x 264 x 41 mm
Weight : modem 2Kg ; antenna 3,9 Kg
Ingress protection : modem IP30 et antenna IPX6
Connectivity : 2 x PoE ; 1 x RJ11 ; 1 x I/O connector ; PBX
Data rate : IP standard up to 100 Kbps

DOCKING

Consulter votre solde de crédit :

*106#

Inmarsat offers global coverage excepted poles

Couverture Inmarsat BGAN
