Intellian OW11FV

Land - Mobile

The Intellian OW11FV is the ideal flat-panel user terminal for government and transportation markets, providing low-latency, high-speed, and reliable connectivity for critical communications, safety, route planning, and entertainment.

Terrestrial

Fixed – Mobile (on the move – Pause)

195 Mbps / 32 Mbps

throughput up to 195 Mbps download and 32 Mbps upload

~100 ms

latency

>99%

availability greater than 99%

Key Features

Optimized Performance

Thanks to Intellian’s innovative antenna design, the OW11FV delivers the maximum throughput allowed on the OneWeb network. With the highest link margin, its performance is guaranteed even during scanning and at low elevation angles, meeting the most demanding requirements of land-mobility customers.

Continuous Connectivity

The OW11FV incorporates Intellian’s advanced tracking technology, an extended scanning range, and blockage mitigation, thereby improving connection reliability and availability even while in motion. Offering the best performance in scanning mode, the innovative flat-panel technology enables smooth and reliable transitions, ensuring seamless and uninterrupted connectivity.

Performance in Extreme Environments

The OW11FV is engineered to deliver reliable performance even in the most demanding environments, with an operating range from –40 °C to +55 °C (–40 °F to +131 °F).

Simplified Installation

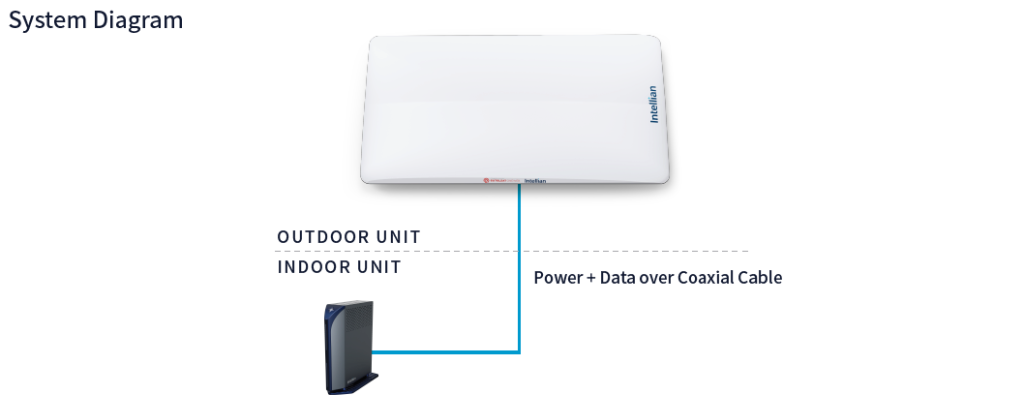

The lightweight design and optimized form factor of the OW11FV allow easy installation by a single person. Combined with Intellian’s mobile mounting adapter kit, the terminal can be installed on vehicles of all sizes. Installation is further simplified with the use of a single coaxial cable for both power and data, connecting the outdoor unit and the CNX unit. Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get connected.

Technical Specifications

Dimensions	97 x 50 x 13 cm
Weight	20.5 kg
Throughput	up to DL: 195 Mbps / UL: 32 Mbps
Operating Temp	(-40 °C to +55 °C)
Ingress protection	IP66

Documentation

Services

The service provided ensures high-speed maritime connectivity via the OneWeb network,

Customer Network Exchange

Intellian’s Customer Network Exchange (CNX) units are a key element of the user terminal installation, providing both power and data connectivity to the flat panel as well as connectivity to customer equipment and networks. A range of CNX variants is available for specific land-deployment scenarios.
