Inmarsat – The benchmark for mobile satellite communication

Logo - Inmarsat Viasat_trimmed

7

Near-global coverage across 7 continents thanks to 14 geostationary satellites

24/7/365

Critical operations 24/7/365

+80

Solutions deployed in more than 80 professional sectors

> 99 %

Service availability greater than 99%

Pourquoi choisir Inmarsat

YOUR ADVANTAGES

Why choose Inmarsat ?

As a pioneer in satellite communications since 1979, Inmarsat provides voice and data solutions across all environments: maritime, land, and air. With near-global coverage, Inmarsat technology guarantees security, portability, and data connectivity in all circumstances.

An unique network in the world.

Logo - Inmarsat Viasat_trimmed
Key BenefitsDirect impact on your operations
Global coverageContinuous connectivity across the globe (except the poles), allowing you to operate everywhere with the same reliability
Exceptional reliabilityInfrastructure continuously optimized for 40 years, with shared or dedicated bandwidth options tailored to your operational needs.
Multiple solutionsFrom simple satellite phones to high-speed connections (up to 4 Mbps), covering all your communication needs
Compliance with standardsSolutions that comply with international requirements (GMDSS, LRIT, SSAS) essential for the safety of your maritime operations
Flexibility of usePortable, fixed or embedded terminals to perfectly adapt to your specific operational constraints
Customized packagesOffers tailored to your actual consumption, optimizing your budget without compromising on quality

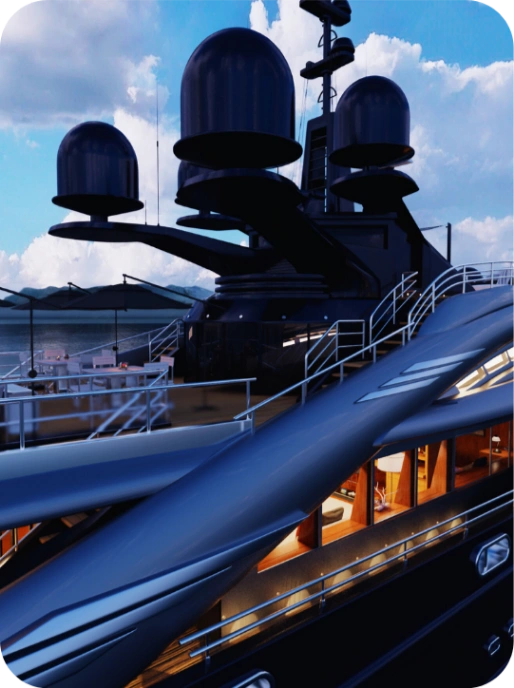

Solutions satellites Inmarsat Maritimes

YOUR CRITICAL CHALLENGES

Solutions by sector

YOUR NEED

Stable, reliable communications compliant with maritime regulations.

Our solutions

  • FleetBroadBand (FBB) – The maritime industry standard with over 100,000 vessels equipped, offering connections up to 464 Kbps and multi-SIM options.

  • Fleet Xpress (FX) – A high-speed solution (up to 4 Mbps) for large maritime users, featuring Ka-band technology and L-band redundancy.

  • Inmarsat C – A legacy service essential for maritime safety, compatible with LRIT, SSAS, and GMDSS standards.

  • FleetOne – A cost-effective solution for small vessels and recreational boating with flexible prepaid options.


Business Impact :
Transform your vessel into a true extension of your business, with reliable connectivity for critical operations and crew well-being, while ensuring your regulatory compliance.

YOUR NEED

Reliable communications while travelling or in remote locations.

Our solutions

  • IsatPhone 2 (GSPS) – Next generation satellite phone with GPS and emergency SOS button, usable outdoors or indoors via docking station
  • BGAN – Portable voice and data solution (up to 484 Kbps shared, 650 Kbps streaming), proven in crisis situations.
  • BGAN M2M – Rugged terminals for communication between connected objects, ideal for remote equipment monitoring.
    Land Xpress (GX) – Professional broadband solution up to 4 Mbps via small parabolic antenna, with pointing assistance.


Business Impact :
Quickly deploy a connected office anywhere, with access to video conferencing and critical applications, while monitoring your remote equipment.

An infrastructure proven over 40 years.

Constant evolution

From the I4 (L-band) to I5 (Ka-band) and I6 (L-band and Ka-band) constellations, Inmarsat continuously renews its fleet to guarantee long-term performance and reliability. With a lifespan of 25 years per satellite, this ensures a sustainable service.

Tempêtes et cyclones - Inmarsat

Complete ecosystem

Proprietary infrastructure including geostationary satellites, earth stations and Internet points of presence ensuring total control of the service chain, from space to your terminal.

Inmarsat x Cobham - BGAN pour médias

Advanced governance and control

Detailed consumption tracking, clear billing, customizable traffic alerts and access limitation to certain protocols for optimal management of your bandwidth according to your business priorities.

Gouvernance Inmarsat

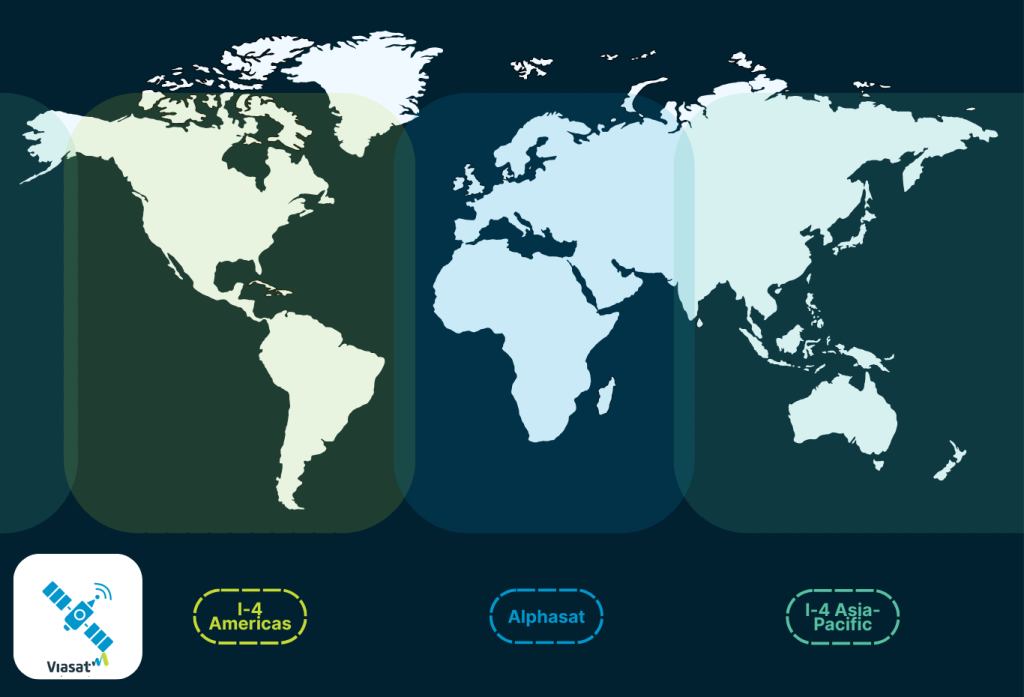

Network coverage

Redundant architecture with I4 (L-band), I5 (Ka-band), I6 (L-band, Ka-band) constellation and presence on all oceans and continents, ideal for maritime applications.

Couverture réseau Inmarsat

“On our merchant ships operating in the North Atlantic, we regularly encounter areas where conventional communications are impossible. With the Standard-C equipment provided by E-SAT, we can send and receive safety and operational messages at any time via the Inmarsat network. This has allowed us, for example, to quickly coordinate an intervention during an engine failure 200 miles from the coast, without losing contact with our shore base.”

Director of Operations, International Shipping Company

An Inmarsat project ?

Every professional communication need is unique. Our experts are available to analyze your operational constraints and design the Inmarsat solution perfectly suited to your industry.

Our ranges of Inmarsat
equipment

BGAN Explorer


Inmarsat BGAN terminals enable high-speed mobile satellite connectivity, suitable for professional, military or humanitarian uses requiring stable and fast communications anywhere in the world.

FleetBroadBand & FleetOne

Inmarsat FleetBroadband and Fleet One services guarantee continuous maritime communication, combining high bandwidth and global coverage for commercial, fishing or exploration vessels.

Inmarsat-C


Inmarsat-C systems ensure the secure transmission of critical messages and data, in accordance with international GMDSS standards for maritime safety.

Satellite Phones

Inmarsat handheld terminals offer reliable satellite connectivity to stay in touch anywhere. Ideal for field missions, crisis management, and areas without terrestrial coverage.

Docking Stations

Inmarsat docking stations facilitate the integration and commissioning of your satellite equipment, ensuring a stable connection, secure power supply and optimal ease of use.

Applications

  • Land
  • Vehicule

In the Box

  • Terminal Explorer 323 (modem + antenna)
  • DC et Ethernet cables (6m)
  • Installation guide

Services

Satellite Internet (data), email, voice / VoIP, SMS, light data/video streaming, Wi-Fi hotspot, multi-device connectivity, global access via Inmarsat BGAN.

  • Dimensions : 9.7 cm x Ø32.1 cm
  • Weight : 3.9 kg
  • Ingress Protection : IP66
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : LAN ; WLAN ; DC + Ethernet cables ; SIM card reader
  • Throughput : IP Standard up to384 Kbps ; IP Streaming up to 64 Kbps

Applications

  • Land
  • Vehicule

In the Box

  • EXPLORER 325 terminal (modem)
  • Antenna
  • Magnetic fixing kit
  • 2.7m antenna cables
  • 2m Ethernet cable
  • Thrane IP handset
  • 2/24 V DC power cable (3 m)
  • Getting Started Kit: Quick Start Guide, CD with Manuals

Services

Satellite Internet access (BGAN), satellite voice, SMS, fax, data connectivity, VPN, multi-device access, global communication even while on the move.

  • Dimensions : modem 41 x 231 x 278 mm ; antenna 128 x Ø 349 mm
  • Weight : modem 2.2 kg ; antenna 3.6 kg
  • Ingress protection : modem IP31 ; antenna IP56
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 1 x RJ11 analog ; 1 x Ethernet RJ45 ; modem TNC-Socket, F ; antenna : TNC-Socket, F
  • Data rate : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Applications

  • Land

In the Box

  • EXPLORER 510 terminal
  • Ion-Lithium battery
  • Carry bag
  • USB to Ethernet Adapter
  • Power supply 100-240VAC
  • Quick start kit: multilingual quick start guide + Multilingual user interface (ENG, FR, ALL, ES, RU, JP, CH)

Services

Satellite Internet (IP data), streaming, Wi-Fi connectivity for multiple devices, voice / VoIP, SMS, email, data, global access via the BGAN network.

  • Dimensions : 202 x 202 x 51,8 mm
  • Weight : 1.4 kg
  • Ingress Protection : IP66
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 1 x USB 2.0 ; 1 x WLAN
  • Battery : Lithium-ion, up to 3 hours of communication
  • Throughput : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Applications

  • Land

In the Box

  • Terminal explorer 540
  • Mounting bracket
  • Installation manual

Services

M2M data (telemetry, SCADA, IoT), data reporting, VPN / secure data, global BGAN connectivity, cellular failover, remote communication (monitoring, surveillance).

  • Dimensions : 202 x 202 x 51.8 mm
  • Weight : 1.6 Kg
  • Ingress Protection : IP66
  • Operating temperature : – 40°C à + 75°C
  • Connectivity : 1 x micro-USB ; 1 x RJ45 ethernet with PoE ; Ethernet ; I/O connector
  • Data rate : IP standard up to 464 Kbps

Applications

  • Land

In the Box

  • EXPLORER 710 terminal (modem + antenna)
  • Ion-Lithium battery included
  • Antenna cable 0.1m
  • ISDN / LAN cable 2m
  • 15-230VAC power supply
  • Getting Started Kit: Quick Start Guide

Services

The Cobham Explorer 710 supports Voice services (analog telephony or VoIP/SIP), Standard IP Data (up to 492 kbps), Streaming IP Data (with BGAN HDR up to 650 kbps), ISDN (64 kbps), and SMS.

  • Dimensions : 332 x 279 x 54 mm
  • Weight : 3.2 kg
  • Ingress protection : modem IP52 ; antenna IP66
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 1 x RJ11 analogique ; 2 x RJ45 PoE Cl.2 sur une interface RJ-45 ; 1 x port USB ; 1 x RJ45 ISDN ; 1 x WLAN
  • Battery : Lithium-ion, up to 2h30 transmission
  • Throughput : IP standard up to 492 Kbps ; IP streaming up to +650 Kbps (streaming HDR)

Applications

  • Vehicule

In the Box

  • EXPLORER 727 terminal (modem + antenna)
  • Antenna cable 2.7 m
  • Ethernet cable 5 m
  • Thrane IP handset
  • 24V DC power cable 6 m with 5 additional wires for input / output connector
  • Antenna mounting kit
  • Getting Started Kit: Quick Start Guide, CD with Manuals

Services

Satellite Internet (IP data), streaming, voice (telephony), SMS, fax, ISDN, multi-user connectivity, global access via the Inmarsat BGAN network.

  • Dimensions : modem 42.5 x 231 x 273 mm ; antenna : 128 x Ø477 mm
  • Weight : modem 2.5 kg ; antenna 6 kg
  • Ingress Protection : modem IP31 ; antenna IP56
  • Operating temperature : 25°C to + 55°C
  • Connectivity : 2 x RJ11 analog ; 1 x ethernet RJ45 ; 1 x ISDN RJ45 ; modem TNC-Socket Femelle ; antenna TNC-Socket Femelle
  • Throughput : IP Standard up to 492 Kbps ; IP Streaming up to 256 Kbps

Applications

  • Maritime

In the Box

  • Antenna cable (10 m)
  • DC power cable (1 m)
  • Ethernet cable (2 m)
  • Quick start guide
  • SAILOR Fleet One antenna
  • SAILOR Fleet One terminal
  • User manual

Services

Voice, IP data (up to 150 kbps), email, light web browsing, weather applications, GPS, maritime safety services via the Inmarsat network.

  • Dimensions : 278 x 264 x 41 mm
  • Weight : modem 2Kg ; antenna 3,9 Kg
  • Ingress protection : modem IP30 et antenna IPX6
  • Connectivity : 2 x PoE ; 1 x RJ11 ; 1 x I/O connector ; PBX
  • Throughput : IP standard up to 150 Kbps

Applications

  • Land

In the Box

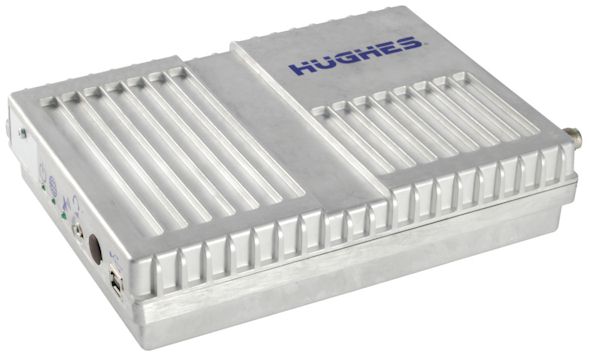

  • HUGHES Terminal 9202M
  • Ion-Lithium battery included
  • 110/240 VAC power supply
  • Ethernet & ISDN cable
  • Getting Started Kit: Quick Start Guide, CD with Manuals

Services

BGAN data (Internet, email, VPN, file transfer), satellite voice, fax, local Wi-Fi network, global satellite access, ideal for remote areas, NGOs, emergency response, and isolated sites.

  • Dimensions : 216 x 216 x 45 mm
  • Weight : 1,5 kg
  • Ingress protection : IP55
  • Operating temperature : – 5°C à + 55°C
  • Connectivity : 2 x RJ11 analog ; 1 x RJ45 Ethernet ; 1 x RJ45 ISDN
  • Battery : Lithium-ion, up to 3.25 h in transmission
  • Throughput : IP standard up to 464 Kbps ; IP streaming up to 128 Kbps

Applications

Services

No technical characteristics found.

Applications

  • Land

Services

No technical characteristics found.

Applications

  • Land

In the Box

  • Hughes 9201 Satellite Terminal
  • Rechargeable Li-Ion battery
  • AC/DC power adapter (110–240 VAC)
  • International plug kit
  • Ethernet cable
  • USB cable
  • User guide and installation CD-ROM (BGAN LaunchPad software)

Services

The Hughes 9201 supports Voice services, Standard IP Data (up to 492 kbps), Streaming IP Data (up to 256 kbps symmetric and BGAN X-Stream™), and ISDN Data (64 kbps).

  • Dimensions : 345 x 275 x 50 mm
  • Weight : 2,8 kg
  • Throughput Standard : Up to 492 kbps UL/DL
  • Throughput Streaming : 32, 64, 128, 256 kbps
  • Interfaces : Ethernet, USB, ISDN, RJ-11, WLAN (802.11b)
  • Battery : Lithium-Ion rechargeable
  • Operating temperature : -25 C to +60 C

Applications

  • Land

In the Box

  • Hughes 9211 Satellite Terminal
  • Rechargeable Lithium-Ion battery
  • Universal AC/DC power supply
  • Power cord
  • Ethernet cable
  • Quick start guide or CD-ROM

Services

The Hughes 9211 supports Voice services (analog telephony), Standard IP Data (up to 492 kbps), Streaming IP Data (guaranteed up to 128 kbps and higher), and ISDN (64 kbps).

  • Dimensions : 232 x 292 x 51 mm
  • Weight : 2 Kg
  • Ingress Protection : IP55 ; MIL-SPEC 810B
  • Operating temperature : – 5°C to + 55°C
  • Connectivity : 2 x POTS RJ11 voice/fax ; 1 x RJ45 Ethernet
  • Battery : Lithium-ion, up to 4 hours of transmission
  • Throughput : IP standard up to 492 Kbps ; IP streaming up to 650 Kbps

Applications

  • Land
  • Vehicule

In the Box

  • Hughes 9350 Satellite Terminal
  • Antenna
  • RF cable for antenna
  • DC power cable for mobile installation
  • User manual + installation/quick start guide

Services

Satellite Internet (IP), voice, ISDN/fax data, Wi-Fi, multi-user connectivity, mobile or fixed access via BGAN.

  • Dimensions : 260 × 256 × 50 mm (modem) 252 mm, 119 mm (Antenne)
  • Weight : 2.8 kg (modem) 1.9 kg (Antenne)
  • Power Supply : 12 V ou 24 V DC
  • Ingress Protection : IP-54 (terminal) IP-56 (antenna)

Applications

  • Vehicule

In the Box

  • HUGHES Terminal 9450-C11 Antenna
  • Antenna: tracking antenna, RF cable (8m)
  • Magnetic brackets
  • Power cable
  • Getting Started Kit: Quick Start Guide, CD with Manuals

Services

Satellite Internet (IP), analog voice, fax, ISDN 64 kbps, IP streaming, Wi-Fi hotspot, multi-device access, global telephony/fax via the BGAN network.

  • Dimensions : modem 46 x 281 x 234 mm ; antenna 252 x 119 mm
  • Weight : modem 2.3 kg ; antenna 2 Kg
  • Ingres Protection : antenna IP56
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 2 x RJ11 analog ; 4 x PoE ; 1 x port ISDN ; 1 x WLAN
  • Throughput : IP standard up to 464 Kbps

Applications

  • Land
  • Maritime
  • Vehicule

In the Box

  • IsatDock2 DRIVE Docking Station

  • 2 × IsatDock Adapters for IsatPhone 2

  • Universal Mounting Bracket (Bracket / RAM)

  • Built-in Speaker + Microphone for Hands-Free Operation

  • 10–32 V DC Power Cable + Fuse Kit / DC Power Supply

  • User Manual + Quick Start Guide

Services

Satellite calls, SMS, circuit-switched data, hands-free operation, GPS tracking, emergency alerts, external antenna connection, standard telephone/PABX interface.

  • Dimensions : 229 × 99 × 76 mm
  • Weight : 0,67 kg
  • Power Supply : 10–32 V DC (Cable provided) – Optional AC/DC Adaptor available
  • Operating temperature : –30 °C à +70 °C
  • Interfaces : Inmarsat Antenna port (TNC-F), GPS antenna port (SMA-F), micro USB, handheld port (RJ9), integrated Speaker and mic, DC power, audio connectors.
  • Certifications : Inmarsat, CE, FCC, RoHS, IEC 60945, EMC etc.

Applications

  • Land
  • Maritime
  • Vehicule

In the Box

  • IsatDock2 Lite 2 Docking Station

  • 2 IsatDock2 Adapters (for phone)

  • 10–32 V DC Power Cable

  • Universal Mounting Bracket (RAM)

  • User Manual + Quick Start Guide

Services

Satellite telephony (voice & SMS), circuit-switched data, GPS tracking, alert / SOS, external antenna connection, hands-free capability, RJ-phone or data interface, continuous power supply.

  • Dimensions : 229 × 99 × 76 mm
  • Weight : 0,56 kg
  • Power Supply : 10–32 V DC (Cable provided) – Optional AC/DC Adaptor available
  • Operating temperature : –30 °C à +70 °C
  • Interfaces : Inmarsat Antenna port (TNC-F), GPS antenna port (SMA-F), micro USB, handheld port (RJ9), integrated Speaker and mic, DC power, audio connectors.
  • Certifications : Inmarsat, CE, FCC, RoHS, etc.

Applications

  • Maritime

In the Box

  • IsatDock2 MARINE Docking Station
  • 10–32 V DC Power Cable (approx. 2 m)
  • AC Power Supply (110–240 V AC)
  • “Privacy Handset” for fixed-line use
  • Alert Wiring Loop (2 m) for external button or emergency
  • Wall Mounting Plate / Mounting Bracket
  • User Manual + Quick Start Guide

Services

Satellite telephony (voice & SMS), connection for fixed or DECT handset, GPS alert/tracking, PBX interface, hands-free speakerphone, USB port for data, 12 V or AC mains power.

  • Dimensions : 276 × 208 × 100 mm
  • Weight : 1,67 kg
  • Operating temperature : –30 °C à +70 °C
  • Ingress Protection : IP54
  • Power Supply : 10–32 V DC ; adaptor AC 110–240 V Provided
  • Interfaces : Inmarsat Antenna port (TNC-F), GPS antenna port (SMA-F), micro USB, handheld port (RJ9), integrated Speaker and mic, DC power, audio connectors.

Applications

  • Land
  • Maritime
  • Vehicule

In the Box

  • IsatDock2 PRO Docking Station
  • 10–32 V DC Power Cable
  • 110–240 V AC Power Adapter
  • “Privacy Handset” (fixed-line phone included)
  • Wall Mounting Plate / Bracket
  • User Manual + Quick Start Guide

Services

Satellite telephony (voice), SMS, connectivity via IsatPhone, fixed-telephone interface (RJ11/POTS), external antenna support, hands-free speakerphone, 12 V or AC mains power.

  • Dimensions : 245 × 197 × 100 mm
  • Weight : 1,45 kg
  • Power Supply : 10–32 V DC
  • Operating temperature : –30 °C à +70 °C
  • Interfaces : RJ11/POTS, TNC antenne, SMA GPS, USB-Micro, prise 12 V, port combiné privé (RJ9)

Applications

  • Land
  • Maritime
  • Vehicule

In the Box

  • Battery
  • Mains 220/110V charger and international plugs
  • 12V car charger
  • Handsfree
  • Micro-usb cable
  • USB key
  • Belt clip
  • User guide (8 languages)

Services

Provides voice, SMS, GPS, geolocation, and an SOS button.

  • Dimensions : 169 x 52 x 29 mm
  • Weight : 318 g
  • Ingress Protection : IP65 et IK04
  • Operating temperature : – 20°C to + 55°C
  • Connectivity : micro USB ; audio In ; Bluetooth 2.0
  • Battery : Lithium-ion, up to 8 hours of autonomy

Applications

  • Maritime

In the Box

  • SAILOR 150 FleetBroadband BDU unit

  • SAILOR 150 FleetBroadband ADU unit

  • BGAN-X BDU power cable

  • 10 m TNC/TNC antenna cable

Services

Voice, IP data, email, GPS geolocation, and operational reporting via FleetBroadband.

  • Dimensions : modem 231 x 278 x 41 mm – antenne Ø 275,6 x 291,9 mm
  • Ingress Protection : modem IP31 – antenne IPX6
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 2 x PoE ; 1 x port téléphone ; 1 x I/O connecteur ; 1 x port L-band
  • Throughput : IP standard jusqu'à 150 Kbps

Applications

  • Maritime

In the Box

  • SAILOR 250/500 FleetBroadband BDU unit

  • SAILOR 250 FleetBroadband ADU unit

  • SAILOR 500/250 installation manual

  • SAILOR 500/250 FleetBroadband quick guide (English)

  • SAILOR 500/250 user manual included

  • Accessories for SAILOR 500/250 Broadband

Services

The SAILOR 250 provides voice, fax, data, ISDN, as well as GPS and geolocation services.

  • Dimensions : Modem 273 x 230 x 42,5 mm / Antenne ø175,4 x 329,2 mm
  • Ingress Protection : Modem IP31 / Antenne IPX6
  • Operating temperature : – 25°C to + 55°C
  • Connectivity : IP standard jusqu'à 284 Kbps, IP streaming jusqu'à 128 Kbp
  • Throughput : jusqu'à 6 lignes simultanées

Applications

  • Maritime

In the Box

  • SAILOR 250/500 FleetBroadband BDU Unit

  • SAILOR 500 FleetBroadband ADU Unit

  • SAILOR 500/250 Installation Manual

  • Quick Guide (English) – SAILOR 500/250 FleetBroadband

  • SAILOR 500/250 User Manual

  • Accessories for SAILOR 500/250 FleetBroadband

Services

The SAILOR 500 provides voice, fax, data, ISDN, video, as well as GPS and geolocation services.

  • Dimensions : modem 273 x 230 x 42,5; antenne ø687 x 797.5
  • Ingress Protection : modem IP31 – antenna IPX6
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 4 x PoE ; 2 x ports téléphones ; 1 x port ISDN ; 1 x I/O connecteur
  • Throughput : IP standard up to 432 Kbps, IP streaming up to 256 Kbps

Applications

  • Maritime

In the Box

  • SAILOR® 3027C mini-C GMDSS Terminal
  • SAILOR® 6018 Message Terminal
  • SAILOR® 6194 Terminal Control Unit (TCU) – optional

Services

The SAILOR 6110 low-bandwidth data service includes SOS, GPS, geolocation, and Telex.

  • Dimensions (GMDSS Terminal) : Diameter: 170.5 mm/ Height: 145 mm
  • Dimensions (Message Terminal) : 234 x 269 x 70 mm
  • Weight : (GMDSS Terminal): 1.10 kg/ (Message Terminal): 2.2KG
  • Power Supply : (GMDSS Terminal): 10.5 – 32 VDC (Message Terminal): 12 or 24 V DC nominal

Applications

  • Maritime

In the Box

  • 6 m NMEA2k Power Cable
  • Mini/Micro NMEA2K T-Connector
  • SAILOR 3027 SSAS Terminal
  • SAILOR 6194 Terminal Control Unit
  • SSAS Button Kit
  • User and Installation Manual

Services

SSAS Ship Security Alert System

  • Dimensions (mini-C Terminal) : Diameter: 170.5 mm / Height: 145 mm
  • Dimensions (Terminal Control Unit) : 239 mm x 172 mm x 54 mm
  • Weight : (mini-C Terminal) :1,1 Kg / (Terminal Control Unit): 0,8 Kg
  • Power Supply : 10.5 – 32 VDC
  • Interfaces : 2 x SSAS alert buttons with 50 m cable /1 x Test button with 50 m cable

Applications

  • Maritime

In the Box

  • 6 m NMEA2k Power Cable
  • Mini/Micro NMEA2K T-Connector
  • SAILOR 3027 LRIT Terminal
  • User and Installation Manual

Services

LRIT (Long-Range Identification and Tracking)

  • Dimensions (mini-C Terminal) : Diameter: 170.5 mm / Height: 145 mm
  • Dimensions (Terminal Control Unit) : 239 mm x 172 mm x 54 mm
  • Weight (mini-C Terminal) : 1,1 Kg / (Terminal Control Unit): 0,8 Kg
  • Power Supply : 10.5 – 32 VDC

Applications

  • Maritime

In the Box

  • SAILOR 3027 Maritime Terminal
  • User and Installation Manual

Services

Vessel Management System (VMS)

Tracking terminal.

  • Dimensions (mini-C Terminal) : Diameter: 170.5 mm / Height: 145 mm
  • Dimensions (Terminal Control Unit) : 239 mm x 172 mm x 54 mm
  • Weight (mini-C Terminal) : 1,1 Kg / (Terminal Control Unit): 0,8 Kg
  • Power Supply : 10.5 – 32 VDC

Applications

  • Maritime

In the Box

  • 6 m NMEA2K Micro Device Cable
  • 6 m NMEA2K Power Cable
  • Mini/Micro NMEA2K T-Connector
  • SAILOR 3027 Non-SOLAS Distress Terminal
  • SAILOR 3042E Accessory Kit
  • SAILOR 6194 Terminal Control Unit
  • User and Installation Manual

Services

  • Vessel Management System (VMS)
  • Tracking
  • Non-SOLAS distress functionality
  • EGC and SafetyNet/FleetNet messaging
  • Dimensions (mini-C Terminal) : Diameter: 170.5 mm / Height: 145 mm
  • Dimensions (Terminal Control Unit) : 239 mm x 172 mm x 54 mm
  • Weight (mini-C Terminal) : 1,1 Kg / (Terminal Control Unit): 0,8 Kg
  • Power Supply : 10.5 – 32 VDC

Applications

  • Maritime

In the Box

  • ADU Unit
  • BDU Unit
  • Handset & Cradle
  • User Manual
  • Quick Start Guide
  • 10 m Antenna Cable
  • 1.8 m DC Power Cable

Services

Voice, IP data, email, GPS geolocation, operational reporting, and access to light applications via FleetBroadband.

  • Dimensions : Modem 287 x 229.6 x 69.7 mm / Antenna ø 294 x 221 mm
  • Weight : Modem 2.8 Kg / Antenne 2.5 Kg
  • Ingress protection : Modem IP44 / Antenne IP66
  • Operating temperature : – 25°C à + 55°C
  • Connectivity : 1 x PoE ; 1 x RJ45 ; connecteur GPS Débit de données : IP standard jusqu'à 150 Kbps

The Inmarsat network provides reliable global, even in the most remote areas.

Carte Inmarsat - E-SAT

Stable & Continuous
Connection

Geostationary satellites offer permanent access to communications and data, even in isolated and oceanic areas.

High bandwidth for critical applications

Thanks to the GX constellation and BGAN services, businesses have reliable connectivity for voice, data and remote monitoring.

Constellation
fully operational

The I-4, I-5 and I-6 satellites provide a robust and proven infrastructure, ready to support your operations 24/7, without interruption.
